15.Roller Speed:
The speed of the roller can be set and
adjusted appropriately for the loading/un-
loading conditions. Use the system fow
control to adjust the roller and wheel drive
speed. Place lever in detent to drive roll-
ers. Increase in small increments to keep
the pick-up and unloading system full.
Decrease the speed if the machine starts
shaking or material comes out of the relief
fap.

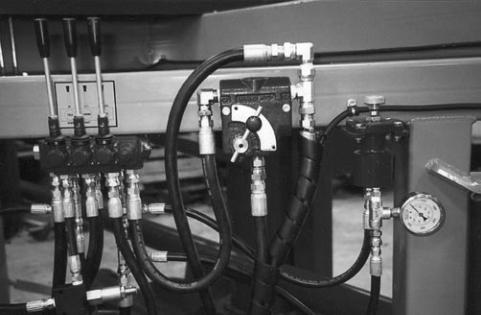

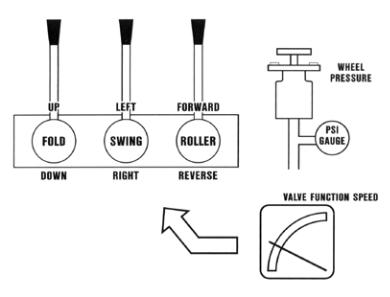

Fig. 36 ROLLER SPEED
