16.Wheels Drives:
TheExtractor is designedwith a fowdivider
that splits the fow of pressurized oil to the
rollers and the wheel motors for moving
the machine into the bag. Use the pres-
sure relief valve to the wheel drive circuit
to increase the circuit pressure to provide
more power to drive the wheels. Use this
feature if the bag is starting to tear and is not
able to carry the load to move the Extractor
into the grain. Watch the pressure gauge to
monitor system pressure and keep it below
2000 psi.

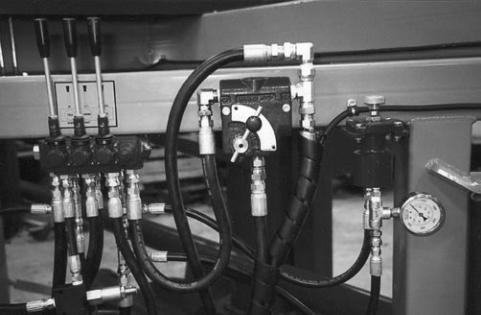

Fig. 37 WHEEL DRIVES
Relief Valve/Gauge
Wheel Motor
Schematic
