14.Bag Rollers:

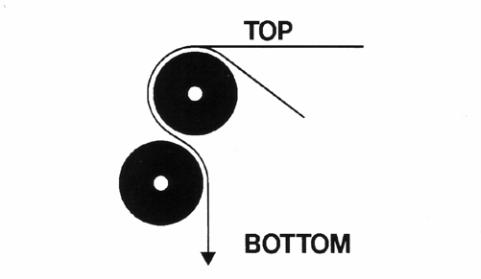

The bag is routed between the two rollers
and is pulled through as the rollers turn.
Place the roller drive control lever in detent
to turn the rollers, pull the bag through the
rollers andmove themachine into the grain
in the bag. Increase the hydraulic pressure
to the wheel motors to assist in moving the
machine into the bag if the plastic starts to
tear.
Fig. 35 PICK-UP ASSEMBLY HEIGHT
Pulling
Routing

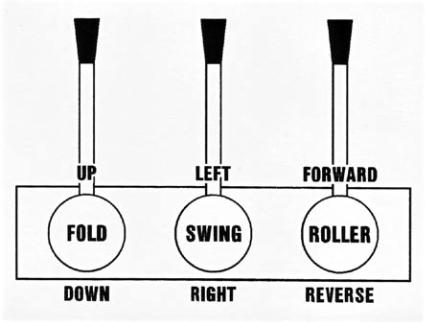

Controls
