13.Roller Position:
The idler rollers on the bottom of the pick-
up assembly are designed to be 1 inch (25
mm) below the gathering augers to mini-
mize the chance of the augers contacting
the plastic bag. Use the frame fold circuit to
set the idler rollers about 2 inches (50 mm)
above the ground. Adjust frame stop bolts
to set idler rollers and prevent the frame
frommoving. Be sure to tighten jam nuts
to their specifed torque.

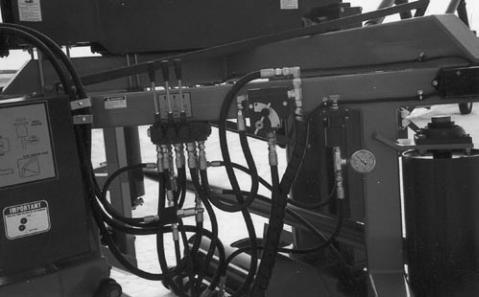

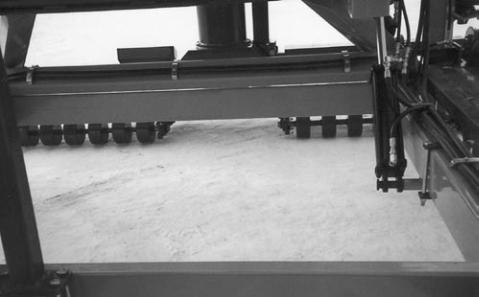

Fig. 34 PICK-UP ASSEMBLY HEIGHT
Idler Roller
Pick-up
Frame Control
Frame Stops (Typical)
2 inches
(50 mm)
