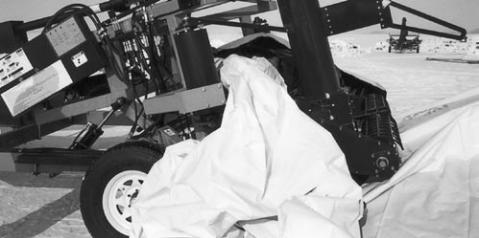

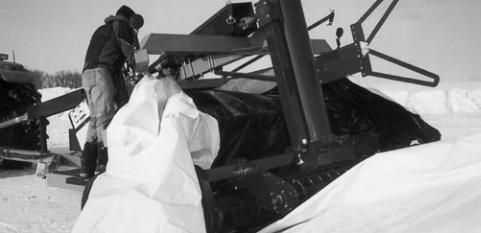

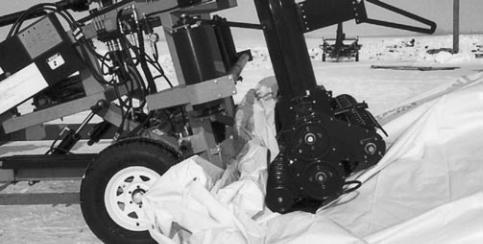

11. Thread the bag into the extractor:
a. Lay the slit bag out on the ground.
b. Pull the bag under the pick-up assembly
and under the guide wheels on the rear
of the assembly.
c. Thread the bag up behind the pick-up
assembly and over the top of the cross
roller and inside the side vertical guide
rollers.
d. Thread the bag over the top of the gather-
ing rolls and back between them.
Fig. 13 BAG THREADING
Under Pick-Up
Over Cross Roller
Into Gathering Rollers

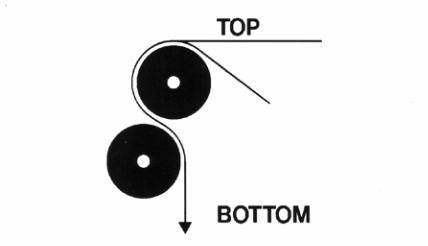

Gathering Rollers
Schematic
