10. Spread the bag gathering rolls:
a. Remove the spreading tool from its stor-
age position.
b. Insert tool into bracket and raise the top
roller on the right side.
c. Support the roller frame with the hinged
lock bracket.
d. Repeat with the left end of the roller and
lock in the UP position.

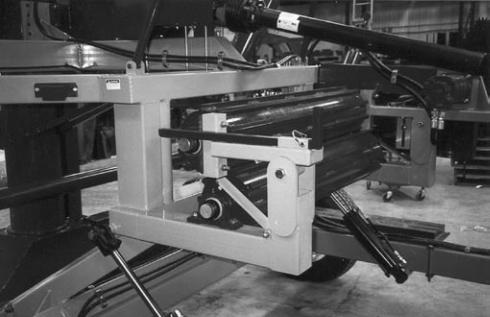

Fig. 12 BAG GATHERING ROLLERS

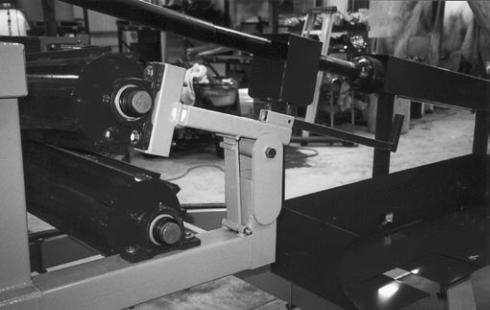

Stored Tool

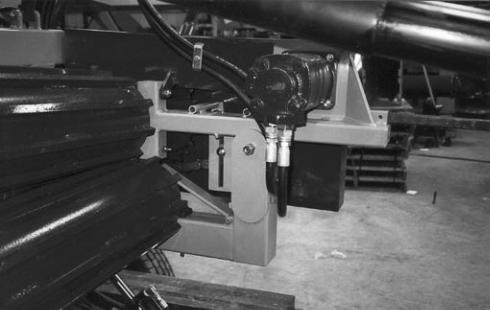

Right Side - Lock
Left Side

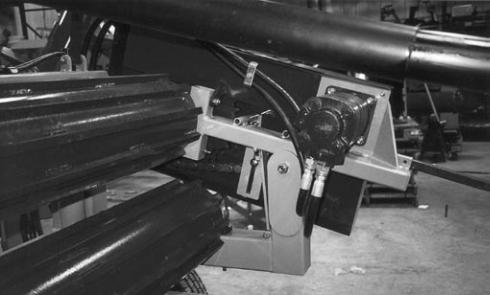

Left Side - Locked
