27
12. Close the gap between the gathering rolls.
13. Start tractor and engage hydraulic system.
Place transmission in neutral.
14. Start gathering rollers and pull some of the bag
through.
15. Fully lower the frame until the idler rolls are
about 2 inches (50mm) above the ground inside
the bag.
16. Start the machine.
17. Watch the bag and make sure the top layer is
fed between the knife.

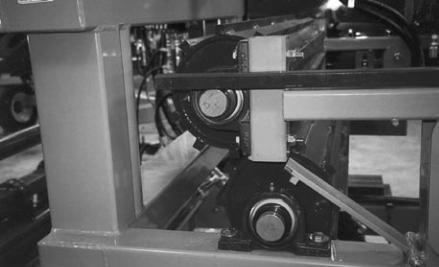

Fig. 14 CLOSED
Rolling
Guided

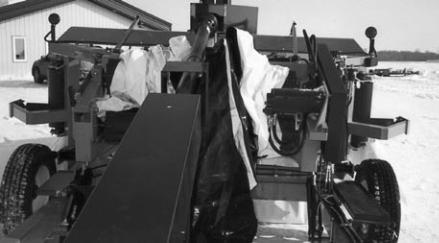

Fig. 15 GATHERING ROLLERS

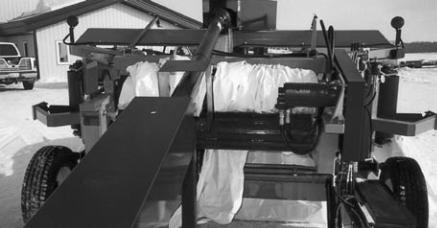

Fig. 16 LOWERED

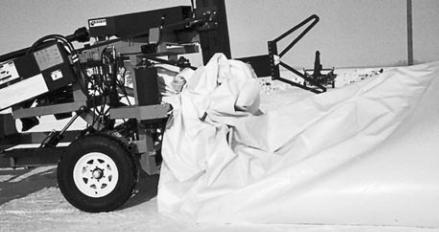

Starting
Knife Started
NOTE
When starting, watch the rollers and bag.
The end of the bag should go through the
rollers and drop to the ground. If it does
not, stop the rollers and pull the end down.
Start the rollers and guide the end of the bag
until it moves through the rollers and drops
to the ground during operation.
