25.Operating Hints:
a. Use the bolts on each side of the frame
to set the guide rollers 2 inches (50mm)
above the ground.
b. Use the fow divider to set the speed of
the rollers and drive wheels. Do not run
too fast and overload the system.
c. Use the relief valve to set the driving
force on the wheels.
Roller

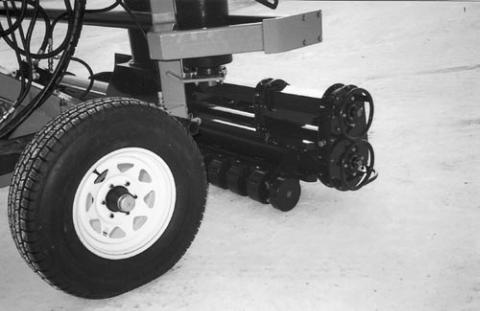

Fig. 45 HEIGHT

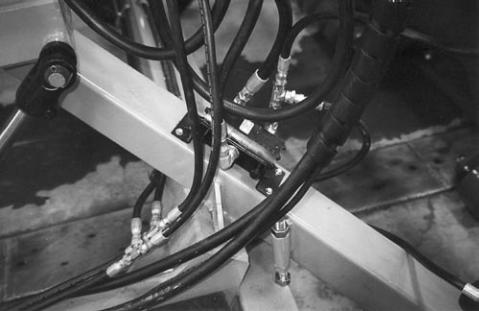

Bolts (Typical)

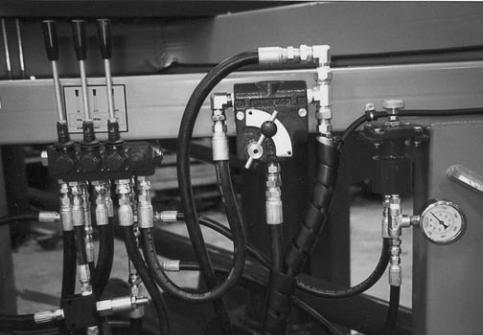

Fig. 46 CONTROLS
b. Flow Divider c. Relief Valve
c
b
2 inches
(50 mm)
