7.Safety Chain:
Attach the safety chain around the draw-
bar cage to prevent unexpected separa-
tion.
8.Attach the PTO Driveline:
a. Depress the lock pin on the yoke and
remove yoke from storage bolt.
b. Check the driveline telescopes easily
and the shield rotates freely.
c. Attach the driveline to the tractor by
depressing the lock pin, slide the
yoke over the shaft and push on
the yoke until the lock pin clicks into
position. Pull on the yoke to be sure
it is locked in position.
d. Attach PTO shaft guard anchor chain
to the input guard frame to prevent
the shield from turning.

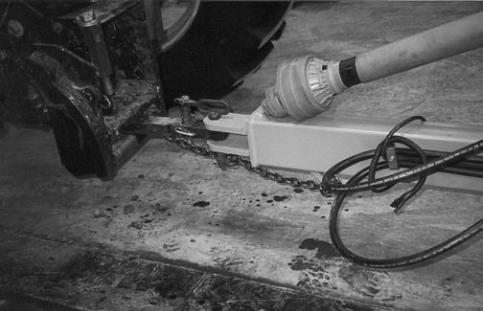

Fig. 19 SAFETY CHAIN

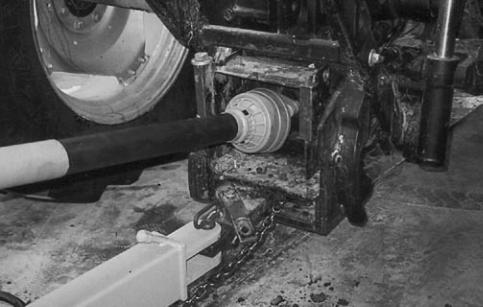

Fig. 20 DRIVELINE

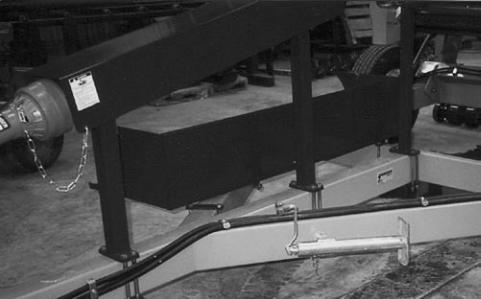

Stowed

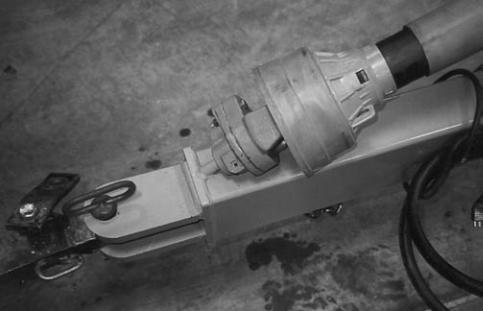

Attached
Anchor Chain - Input Guard
